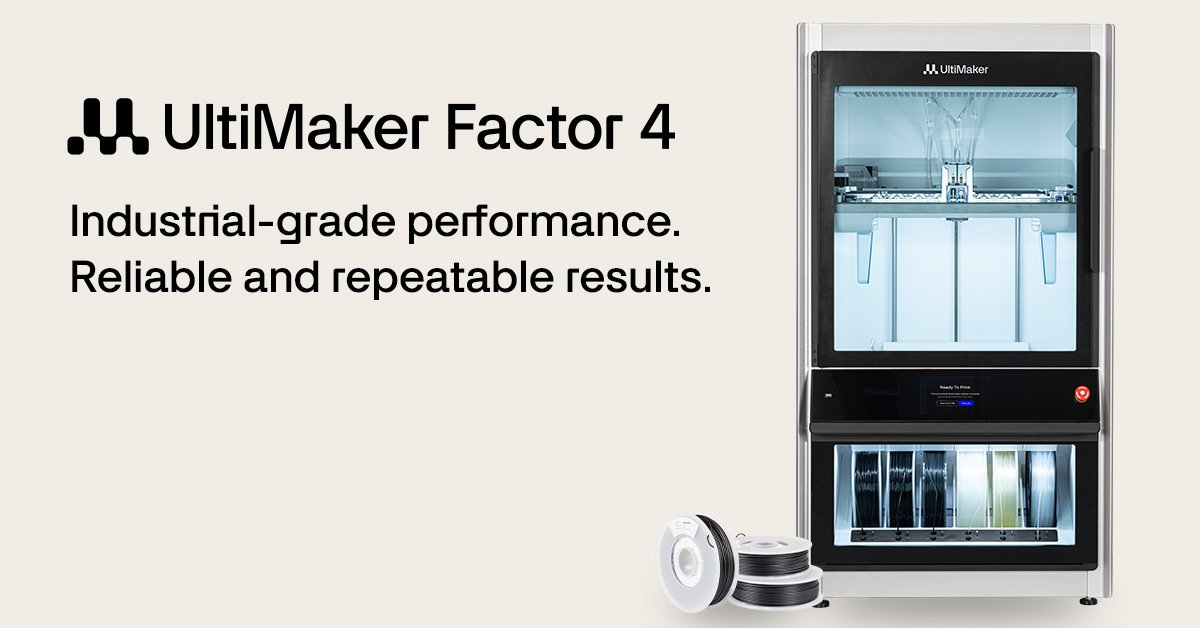

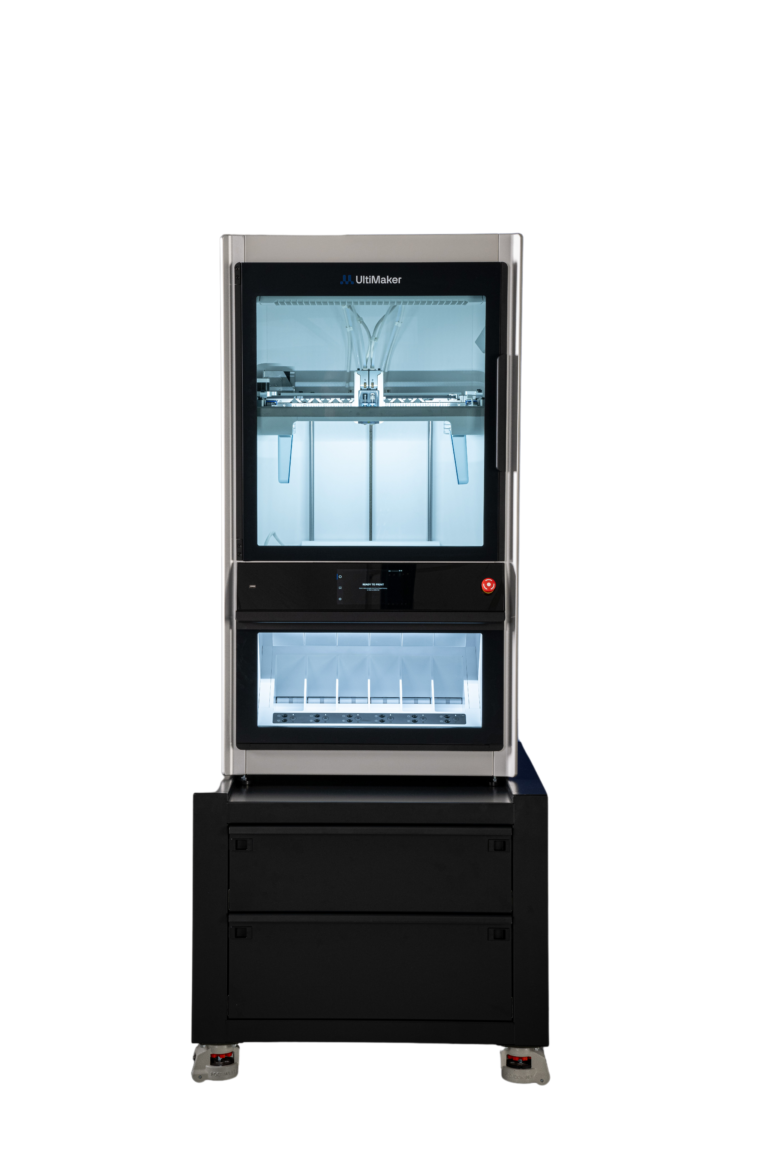

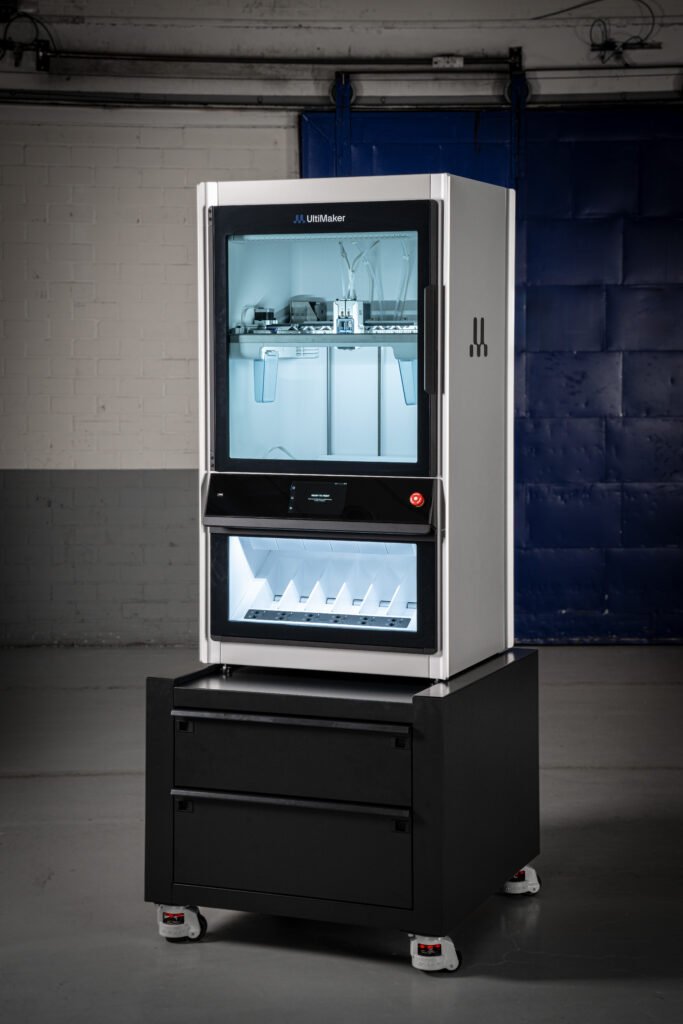

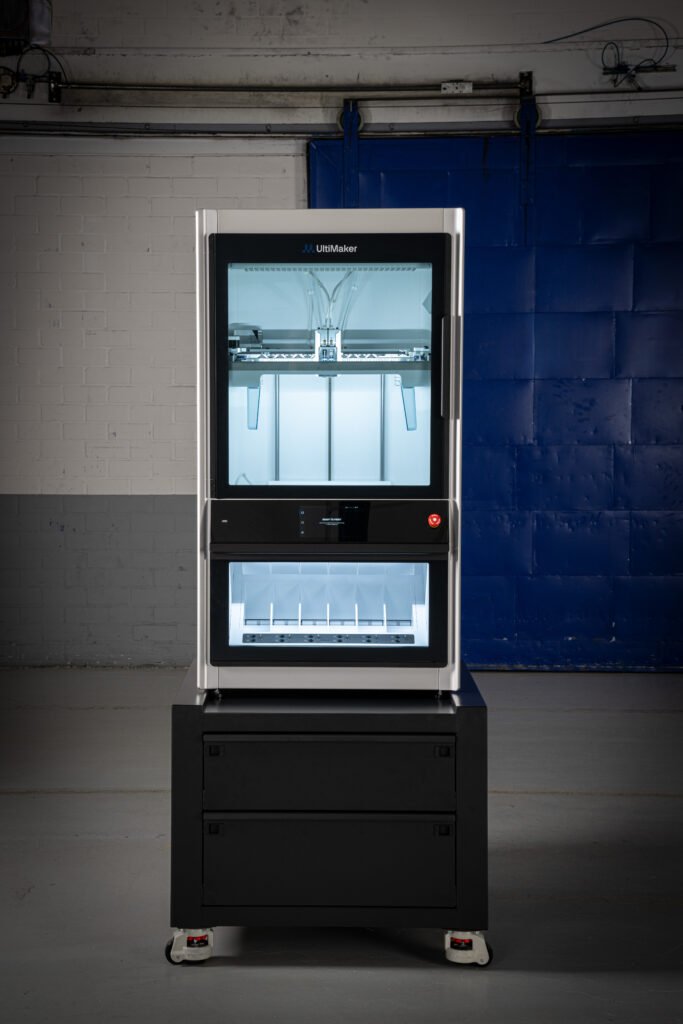

Introducing UltiMaker Factor 4

Industrial-grade performance. Reliable and repeatable results.

UltiMaker Factor 4, our new industrial-grade 3D printer, streamlines production, simplifies processes and keeps operations running. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivaled predictability and minimal variance.

Built for the factory floor.

UltiMaker Factor 4 elevates manufacturing with its triple-insulated build chamber and direct dual extrusion. The automated material handling system maintains filament quality. And the robust, temperature-controlled design ensures consistent production output also on complex and challenging designs. It's the seamless, powerful upgrade that you production workflows demand.

Edge-to-edge dual extrusion.

A spacious build chamber and homogenous bed heating allows you to take advantage of every millimeter of the 330 x 240 x 300 build plate – regardless of what material you are using. This is dual extrusion with almost unlimited design freedom, maximizing what's possible for each print job.

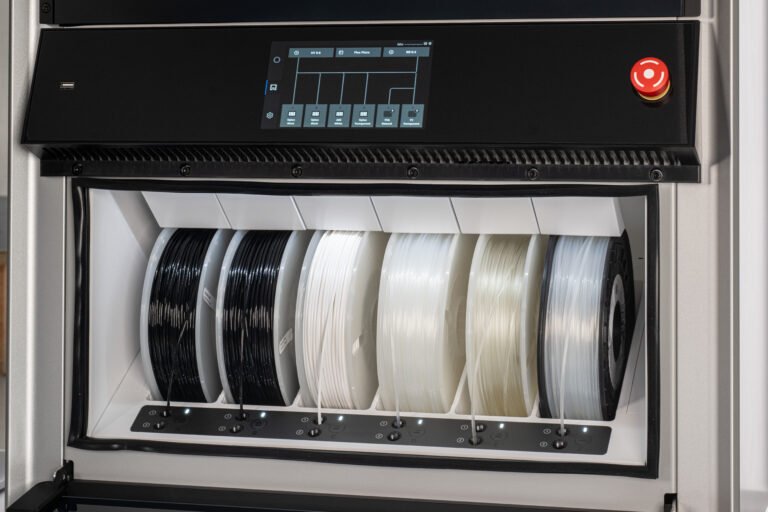

Automatic material handling and storage.

A new, integrated, automatic material handling system reliably manages your spools so you don't have to. The internal chamber is kept at less than 15% relative humidity, so you can keep up to 6 kilograms of filament in perfect condition for back-to-back print jobs.

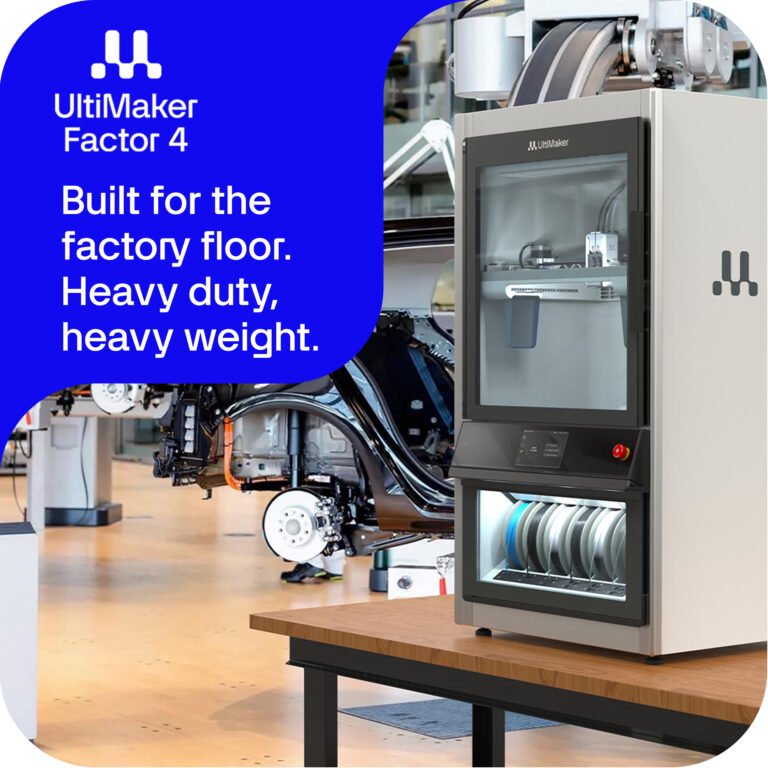

Heavy duty. Heavy weight.

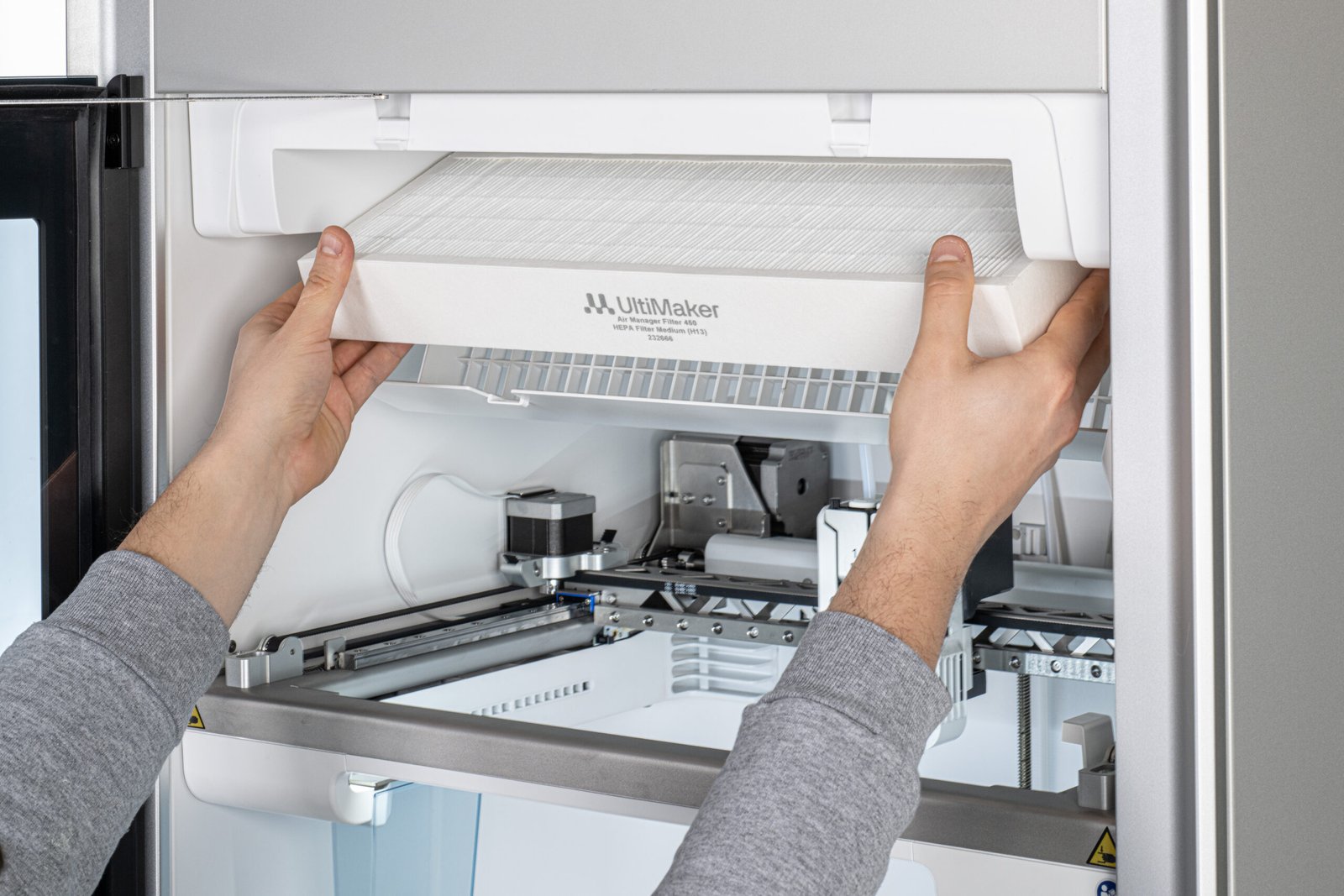

The UltiMaker Factor 4 is most at home in an industrial environment. Built from a robust steel, aluminum, and glass construction, it can be placed anywhere thanks to its triple-insulated and temperature-controlled build volume and integrated HEPA filter.

A simple, powerful addition to your workflow.

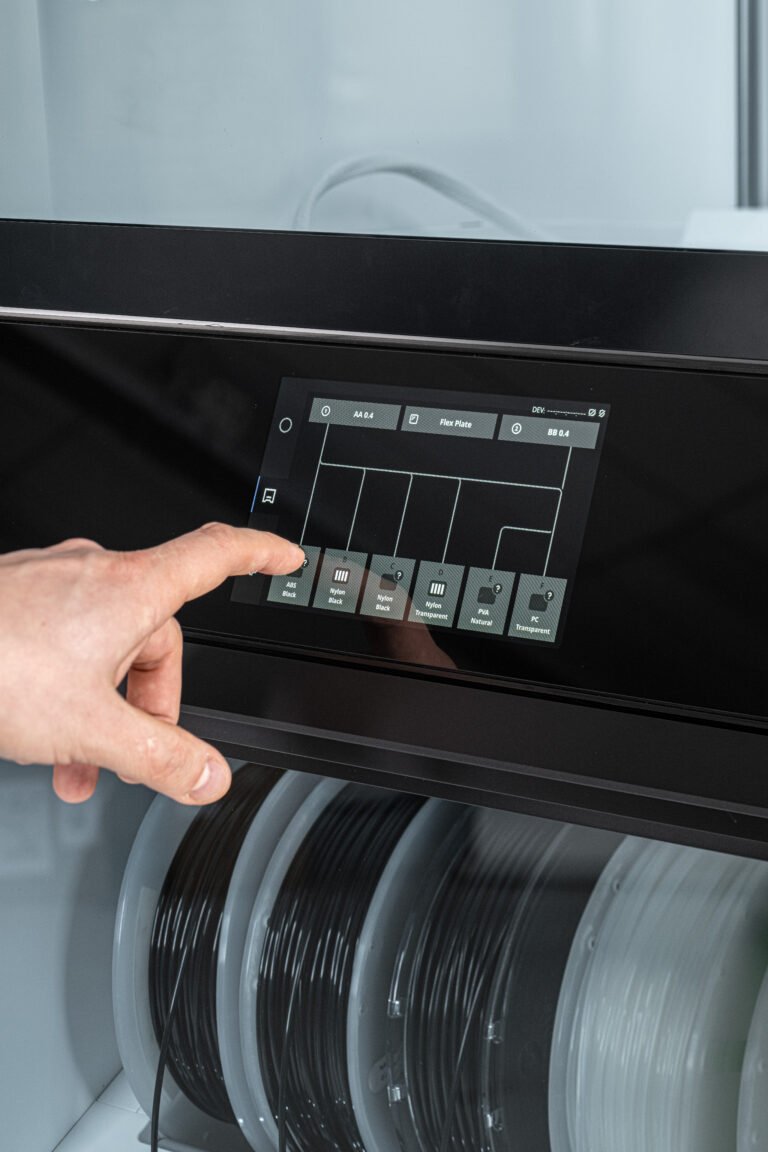

The UltiMaker Factor 4 is a 3D printer you can use with confidence. Its 7-inch capacitive touchscreen shows more real-time process data. Its door pauses a print when opened. And its large, red "stop" button makes operation safer if ever you need to quickly stop UltiMaker Factor 4 printing.

3D printing reliability and repeatability.

UltiMaker Factor 4 features in-depth, onboard reporting to ensure easy validation and quality control, making it the perfect choice for engineers seeking reliable and repeatable 3D printing. Tested to achieve over 95% print completion success* and dimensional accuracy within ± 0.2 mm ± 0.2 % of the feature nominal length, UltiMaker Factor 4 delivers consistent results across multiple machines – ideal for producing validated parts for distributed manufacturing. *95% print success rate tested using UltiMaker PLA, Tough PLA, PETG, PET CF, and PPS CF.

Success with every 3D print.

The UltiMaker Factor 4 has been thoroughly tested to ensure it achieves a print completion success rate of over 95%. This is made possible by its PEI-coated flexible built plate, allowing for excellent adhesion. And its automatic inductive bed leveling to ensure a perfect first layer for every print.

Create dimensionally accurate parts.

Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features. These will achieve a dimensional accuracy of ± 0.2 mm or ± 0.2% of feature nominal length over the full build plate and across multiple printers.* *Dimensional accuracy of ± 0.2 mm or ± 0.2% print success rate tested using UltiMaker PLA, Tough PLA, PETG, PET CF, and PPS CF.

High quality. Every time. Any where.

UltiMaker Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations. The low variance , less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and unformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.

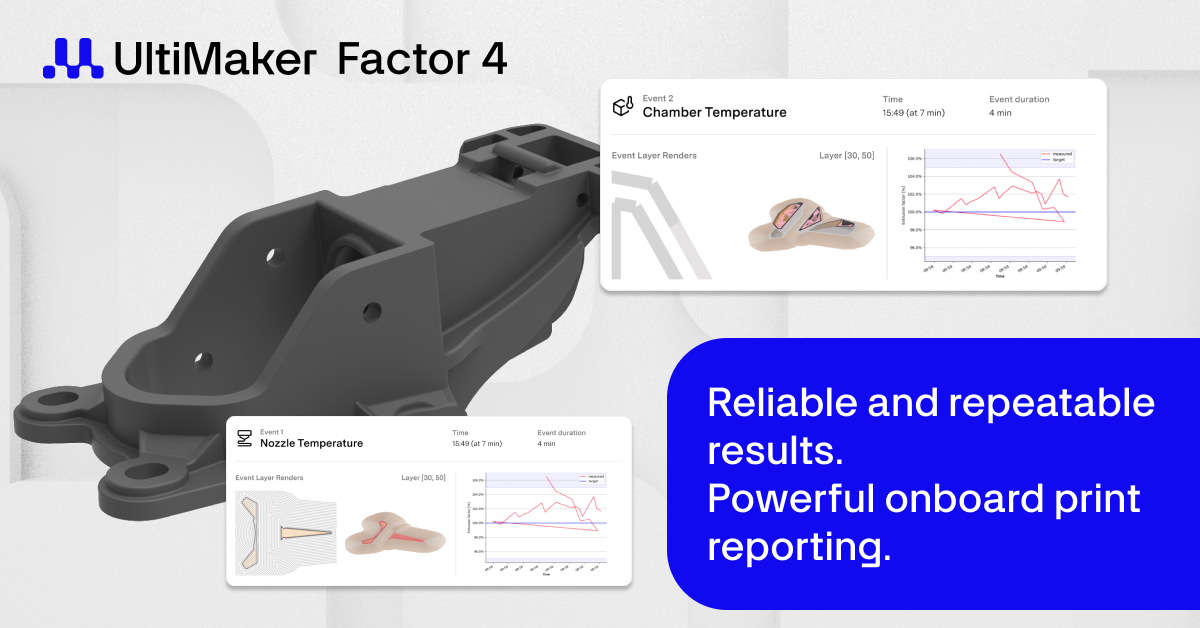

Powerful onboard print reporting.

After every print job, receive an in-depth report on extrusion parameters deviations from nominal values, their locations, and their severity in the 3D model. Using a suite of sensors in the print head, build chamber, and material loading system, this print process reporting helps to verify and validate part quality before use in the field.

Achieve more with FDM 3D printing.

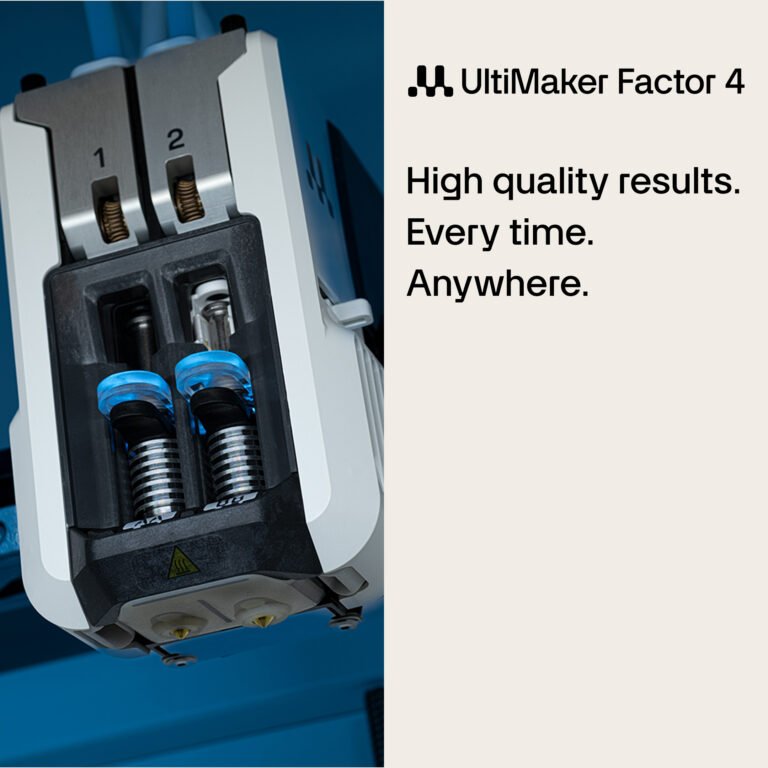

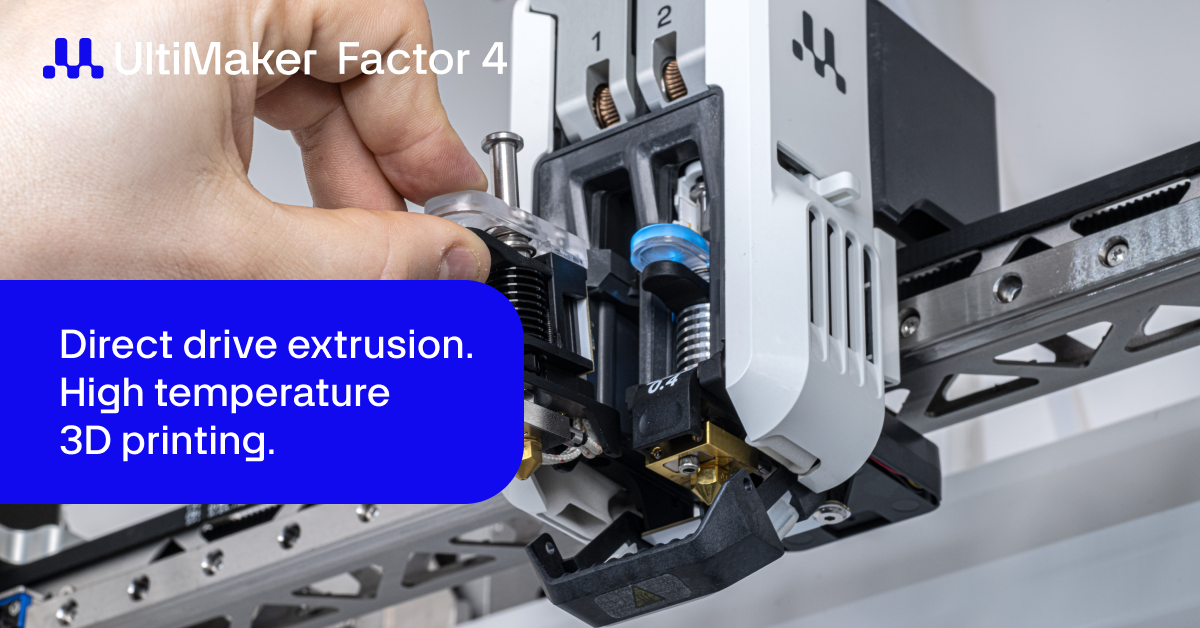

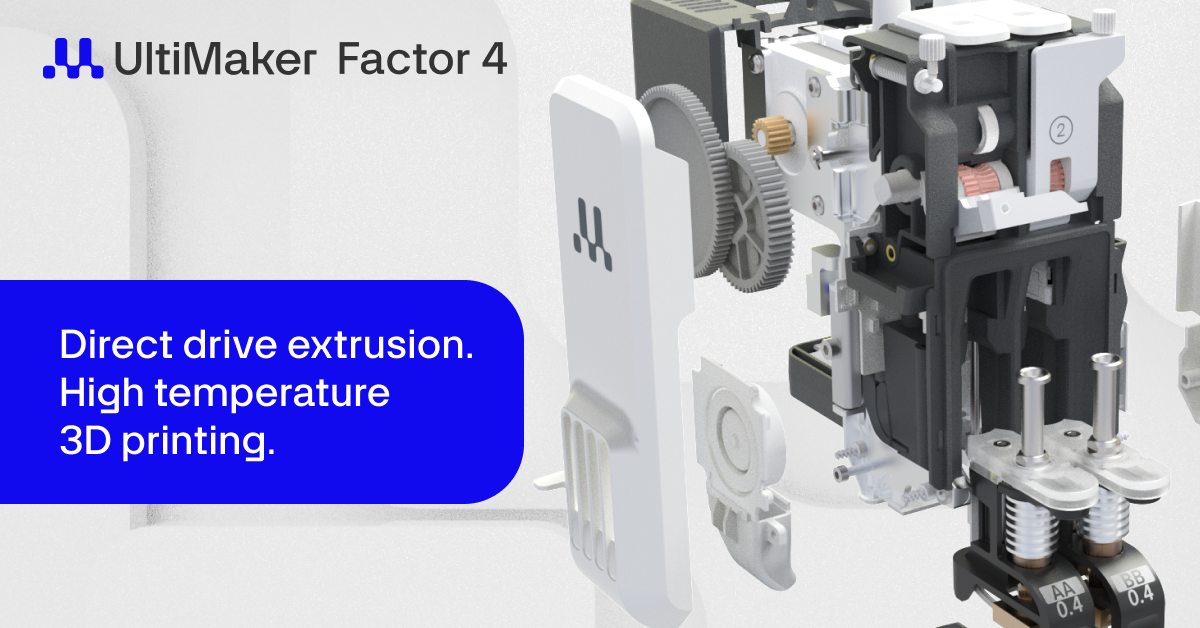

The UltiMaker Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS-CF. Its H-bridge gantry and direct drive head enable rapid dual material printing. And with a high-temperature range up to 340°C and a heated bed, it maintains quality even with challenging materials – all while integrating seamlessly with Cura and major AM software platforms.

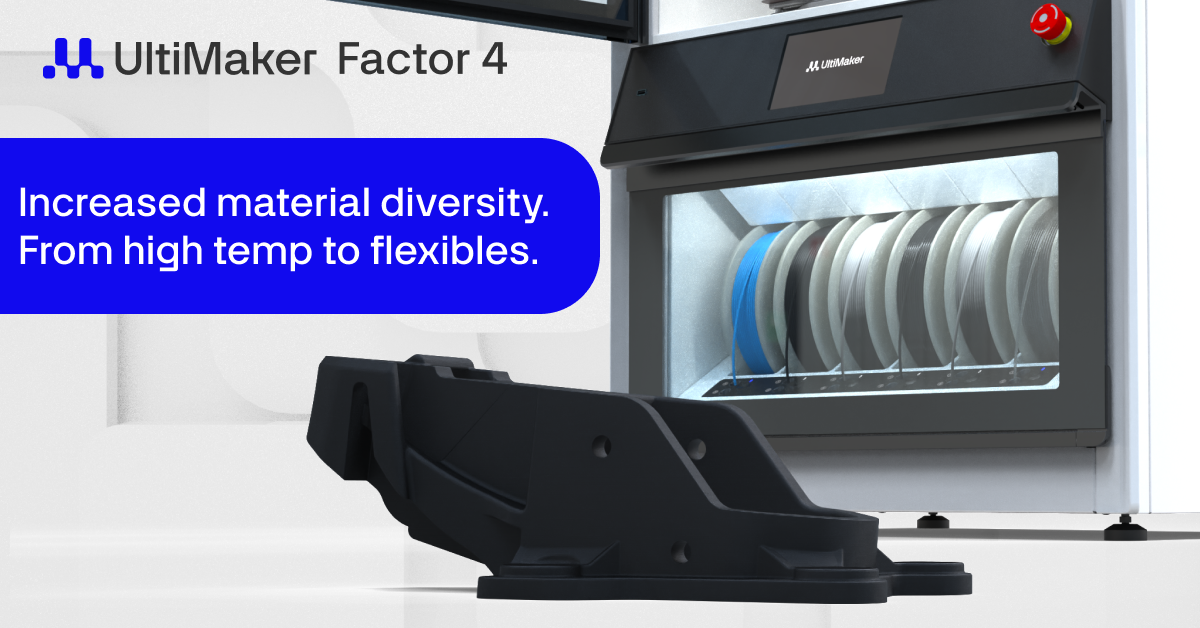

Increased material diversity.

A wider range of high-performance materials opens up a huge range of new 3D printing applications on UltiMaker Factor 4. The new UltiMaker PPS-CF allows you to use this high-temperature composite to replace less-demanding complex steel parts and manufacturing aids with an excellent surface finish. Plus, flexible materials down to Shore 70A means you can reliably create gaskets, seals, and shock absorbers.

High-temperature 3D printing.

UltiMaker Factor 4 raises the temperature up to 340 °C using the HT print core. This means that you can now 3D print higher temperature-resistant and durable materials with more confidence. The temperature within the fully enclosed build volume is also controlled up to 70 °C, with a heated bed up to 120 °C, ensuring optimal material-specific processing conditions and consistent part quality wherever the 3D printer is located.

A hassle-free workflow.

When hardware, software, and materials are all developed under the same roof, you get a seamless 3D printing experience that's always up to date. Whatever your UltiMaker Factor 4 setup, all UltiMaker materials and print cores are automatically recognized within UltiMaker Cura. And it's incredibly easy to import CAD files and projects from leading software partners, like AutoDesk 360 and Trinckle.

A future-proof investment.

Regular updates ensure that your UltiMaker Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment. The 3D printer's modular build allows our global support network to quickly replace parts, minimizing downtime. And staying true to UltiMaker's open-system philosophy, the UltiMaker Factor 4 offers full material choice built on over ten years of innovation in 3D printing.

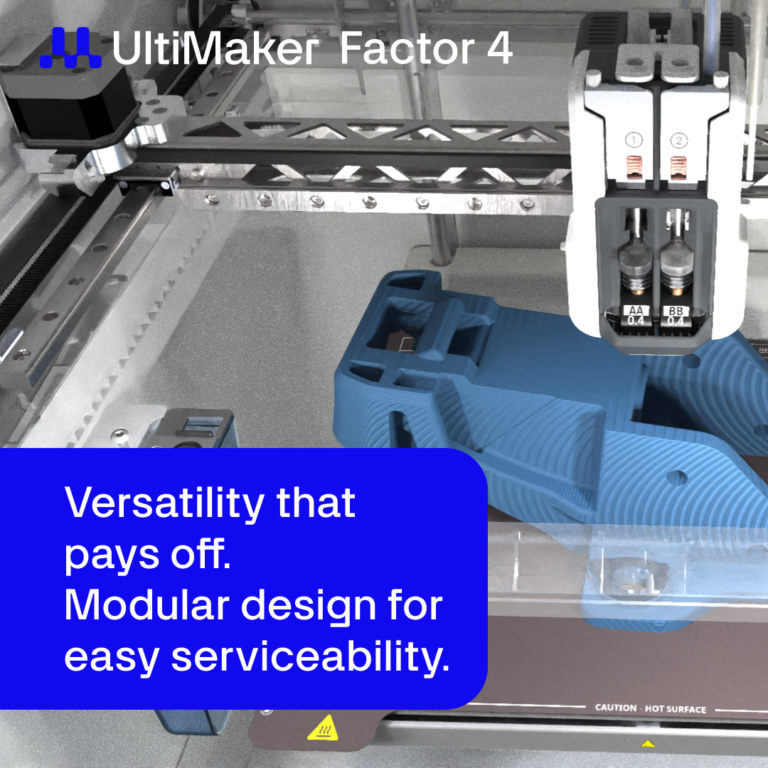

Versatility that pays off.

UltiMaker Factor 4 is a powerhouse 3D printer in a new class of industrial machines. Thanks to its material diversity, you can create an extremely wide range of high-value 3D printing applications. Because of this, we expect that customers will be able to achieve a return on their initial investment within 12 to 18 months.

Always up to date.

If you have ever used UltiMaker Cura, you know that we waste no time rolling out regular updates. In the same way, the UltiMaker Factor 4 you buy today will pale in comparison to the UltiMaker Factor 4 you own in the next five years. With dual onboard processors, there is plenty of computing headroom for planned and even unplanned future updates.

Easy serviceability.

UltiMaker Factor 4 was designed to be modular. This means less production downtime in the event that a part of the printer needs servicing. Under the UltiMaker Factor 4 service plan, an expert technician anywhere in the world will be able to quickly swap the faulty part out for another so you can get up and running again as quickly as possible.

New printer. Same DNA.

Despite being an industrial-grade 3D printing platform, UltiMaker Factor 4 is an open system, allowing you to 3D print with the ideal materials to suit your needs. It is built on more than 13 years of UltiMaker legacy – dedicated to innovation, accessibility, and openness.
